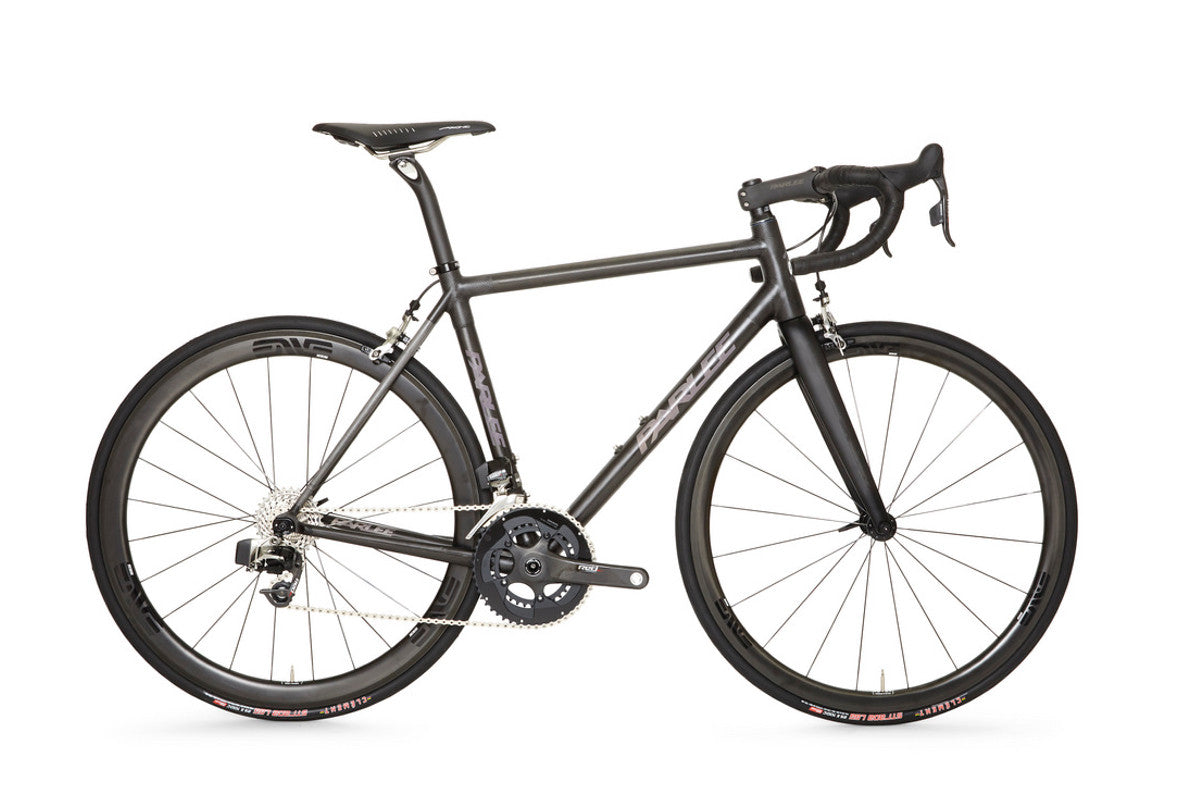

Parlee Z-Zero Bespoke Build Carbon Fibre Frame and Fork


Available to Order Delivery time depends on geometry and colour choice - contact us for information

Type: Frames
Vendor: Parlee

Description:

Bike Science Bristol are proud to be one of a select number of independent bike shops in the UK having been selected to supply and fit Parlee bikes. Each Parlee frame or complete bike supplied includes our highest Level of Retul fitting service to ensure the best possible set up. Please contact us to discuss a fitting appointment and complete bike build options.

THE LATEST BENCHMARK: Z-ZERO

In an industry where three years is considered the normal lifespan of a bicycle design, the Parlee Z1 has stood alone. A design so advanced that it still continues to be a benchmark, not just for customizable carbon bikes, but also a true reference point for all road bikes with performance aspirations. For over a decade we have relentlessly refined and perfected the Z1, to keep it compatible with the latest components and performance needs. This begs the question: why introduce the Z-Zero? There have been several technical developments in our stock bikes the past three years that have allowed us to increase performance and reduce weight but not compromises comfort or durability. The Z-Zero eliminates any semblance of compromise. The Z-Zero includes all the modern performance features of a cutting-edge race bike with the ride tuning and custom fit.

Unlike 99.9% of modern road bikes, the Z-Zero is 100% made to order, with the optimum performance characteristics and technical requirements perfectly met for each individual rider. Parlee simply do not start fabrication without knowing the riders needs perfectly. Available in 16 effective semi-custom sizes and full custom geometry, the Z-Zero simply fits a wider range of athletes than any other carbon road design.

TECHNICAL FEATURES

PARLEE tube joining process: Pioneered on the Z1, Parlee's exclusive molding process is the technical benchmark for fusing carbon fiber tubes into a monolithic structure. Their process is neither “lugged” or traditional “tube to tube” construction. The Z-Zero joining process is more precise, more costly, and unmatched in strength, using only carbon fiber to fuse each tube to another in a manner that yields a wholly unified structure with almost zero redundant material.

Carbon dropouts and bearing races: First used on the Z5, Parlee's compression molded carbon drops and bearing races (in the head tube and bottom bracket) allow us to reduce the metal content in the Z-Zero to less than 20 grams. Eliminating metal correctly in any carbon composite structure translates to lighter weight and better durability.

Shaped, bladder-molded tubing: A technology first used in the Z5, the performance based shaping allows for lighter overall tube weights and optimized tuning of the laminate schedule. A variety of tube designs allows us to perfectly tune the ride to each riders needs. Produced by hand, by Parlee's staff, in Beverly, MA, the Z-Zero tube set is 10-15% lighter on average than the already light Z1 (with better torsional performance).

Tapered head and steerer tubes: An innovation derived from the now industry-wide CEN testing protocols; tapered steerer and head tubes are hardly news anymore, however, with their Z5, Parlee pioneered the use of the smaller 1.250” (32mm) inch lower standard over the heavier 1.500”(38mm) inch standard. Riding the bike demonstrates that the 1.250”(32mm) taper provides the ideal balance for a road bike. Strength, safety, performance and lightweight without harshness.

Disc Brake compatibility: A new standard for the future, disc brakes for road bikes present a range of new options for brake, wheel and drive systems. The Z-Zero was designed from inception to be both caliper and disc brake capable.

Z-Zero Standard Features

  • DESIGN: Compact, custom, sloping road geometry, built to order
  • TT SLOPE: 5-9 degrees
  • TUBING: PARLEE Z-Zero, rider specific lay-up schedule
  • SEAT STAYS: Twin carbon, rider specific lay-up schedule, carbon brake bridge
  • TYRE SIZES: 20-28mm
  • SEATPOST: 31.6mm
  • CABLING: Internal Di2/EPS, eTap or external mechanical
  • BOTTOM BRACKET: Press Fit 30 (68mm x 46mm), English on special order
  • DROP OUTS: Carbon, replaceable hanger, quick release
  • BRAKES: Rim,center mount, internally or externally routed
  • FRONT DERAILLEUR: Braze-on with PARLEE carbon mount
  • STANDARD FINISH: Nude waxed or gloss clear coat
  • OPTIONAL FINISHES: Custom finishes available, contact us
  • FRAME WEIGHT: 800-975g
  • FORK SPECS: PARLEE Road Carbon, tapered steerer, integrated crown race, QR, 280g
  • HEADSET: Integrated Cane Creek, IS41 upper, IS47 lower
  • OPTIONAL EXTRAS: Parlee Carbon Finishing Kit, Bars, Stem, Seat Post - Add £830
